Generation Process Architecture

This document provides a comprehensive understanding of the Ampersand prototype generation architecture, detailing how ADL interface definitions transform into deployable web applications. Software engineers creating or modifying templates require this architectural knowledge to understand the complete data flow from Ampersand scripts to user interfaces.

2. Data Journey: From ADL Interface to DOM

To illustrate the data journey with an example, this chapter traces a single FILTEREDDROPDOWN through each transformation step. The interface definition becomes interactive HTML through template processing and data binding.

Step 1: ADL Interface Definition

Let's assume that test/projects/box-filtered-dropdown/model/main.adl contains this fragment:

INTERFACE "Box-Filtered-Dropdown tests" : "_SESSION"[SESSION] cRUd BOX<TABS>
  [ "Default": V[SESSION*Project] cRUd BOX<FORM>
      [ "1. Assign an employee (cRud)" : I BOX<FILTEREDDROPDOWN>
          [ "selectFrom"   : eligible
          , "setRelation"  : projectMember cRud
          , "emptyOption"  : TXT "- Add Project Member -"
          ]
      ]
  ]

Step 2: Template with Placeholders

The annotation <FILTEREDDROPDOWN> in the Ampersand script specifies the use of /proto/frontend/src/app/generated/.templates/Box-FILTEREDDROPDOWN.html:

<app-atomic-object
    [resource]="resource.$name$"
    [interfaceComponent]="this"
    [property]="resource.$name$"
    propertyName="setRelation"
    label="$label$"
    mode="box-filtereddropdown"
></app-atomic-object>

The template contains $name$ and $label$ placeholders.

Step 3: Ampersand Template Processing

The command ampersand proto --frontend-version Angular --no-backend model/main.adl --proto-dir /proto/frontend/src/app/generated causes the Ampersand compiler to load the FILTEREDDROPDOWN-template. Ampersand substitutes placeholders with interface data:

$name$ becomes _49__46__32_Assign_32_an_32_employee_32__40_cRud_41_
$label$ becomes "1. Assign an employee (cRud)"

The field name encoding converts spaces to _32_, numbers to ASCII codes, and parentheses to _40_ and _41_, so it is a valid identifier in typescript and HTML. It generates the following component in /proto/frontend/src/app/generated/boxfiltereddropdowntests/boxfiltereddropdowntests.component.html:

<div class="field col-12 box-form-field">
    <label class="box-form-label">1. Assign an employee (cRud)</label>
    <div class="box-form-value">
        <app-atomic-object
            [resource]="resource._49__46__32_Assign_32_an_32_employee_32__40_cRud_41_"
            [property]="resource._49__46__32_Assign_32_an_32_employee_32__40_cRud_41_?.setRelation"
            propertyName="setRelation"
            label="1. Assign an employee (cRud)"
            mode="box-filtereddropdown"
        ></app-atomic-object>
    </div>
</div>

The placeholders are replaced. The interface structure is concrete Angular code.

Step 4: Runtime Data Creation

File: backend/src/Ampersand/Interfacing/InterfaceExprObject.php (method: getResourceContent)

At runtime, the backend PHP reads /proto/backend/generics/interfaces.json metadata. The backend creates resource objects with data from the database:

{
  "_id_": "project1",
  "_label_": "Project Alpha",
  "_path_": "resource/Project/project1",
  "_49__46__32_Assign_32_an_32_employee_32__40_cRud_41_": {
    "setRelation": [
      {"_id_": "m1", "_label_": "Jan Jansen"},
      {"_id_": "m4", "_label_": "Klaas Klaasen"}
    ],
    "selectFrom": [
      {"_id_": "m1", "_label_": "Jan Jansen"},
      {"_id_": "m4", "_label_": "Klaas Klaasen"},
      {"_id_": "m5", "_label_": "Anna Annasson"}
    ]
  }
}

Step 5: DOM Rendering

Browser Output: Final rendered HTML in user's browser

<div class="field col-12 box-form-field">
    <label class="box-form-label">1. Assign an employee (cRud)</label>
    <div class="box-form-value">
        <p-dropdown [options]="[Jan Jansen, Klaas Klaasen, Anna Annasson]"
                   [ngModel]="[Jan Jansen, Klaas Klaasen]"
                   placeholder="- Add Project Member -">
        </p-dropdown>
    </div>
</div>

The encoded property name _49__46__32_Assign_32_an_32_employee_32__40_cRud_41_ connects the ADL interface definition to the DOM element. This encoding preserves the interface structure through all transformation steps.

Readers can trace these steps by examining the referenced files in their own test project generation.

3. Debugging the Flow: From Pixels to Ampersand Source

This chapter provides practical guidance for software engineers debugging and troubleshooting interface issues. Understanding the flow from the rendered UI back to the Ampersand source code helps to analyze the root cause of problems and trace software problems back to the source code. It creates the understanding needed to trace problems .

3.1 CRUD Permission Decision Tree

The CRUD flags in your ADL interface definition control how fields are rendered and what operations users can perform. Understanding this decision tree is critical for debugging "missing field" or "unexpected behavior" issues.

CRUD Flag Interpretation

Each position in the CRUD string controls a specific capability:

C (Create): Can create new values
R (Read): Can view values
U (Update): Can modify existing values
D (Delete): Can remove values

Case matters: Uppercase = allowed, lowercase = denied

Component Rendering Decisions

The atomic-alphanumeric.component.html demonstrates how CRUD flags control rendering:

<!-- Read-only: cRud (can read, cannot update) -->
<div *ngIf="canRead() && !canUpdate()">
    <ng-container *ngTemplateOutlet="cRud"></ng-container>
</div>

<!-- Editable single value: CRUD with [UNI] -->
<div *ngIf="canRead() && canUpdate() && isUni">
    <ng-container *ngTemplateOutlet="cRUdUni"></ng-container>
</div>

<!-- Editable multiple values: CRUD without [UNI] -->
<div *ngIf="canRead() && canUpdate() && !isUni">
    <ng-container *ngTemplateOutlet="cRUd"></ng-container>
</div>

<!-- Not readable: CrUD or crud -->
<div *ngIf="!canRead()">
    <ng-container *ngTemplateOutlet="crud"></ng-container>
</div>

CRUD Combinations Reference Table

CRUD	[UNI]	[TOT]	Rendered Component	User Actions Available
`CRUD`	Yes	No	Single editable input field	Type, edit, clear value
`CRUD`	Yes	Yes	Required single input field	Type, edit (cannot clear)
`CRUD`	No	No	List with add/remove buttons	Add multiple values, remove any
`CRUD`	No	Yes	List with add button	Add values, remove (must keep ≥1)
`CRud`	-	-	Read-only display	View only
`CrUD`	Yes	-	Empty field with add button	Create new value
`CrUD`	No	-	Empty list with add button	Add multiple values
`crud`	-	-	"Field is not readable" message	None (field hidden)
`cRUd`	Yes	-	Editable if value exists	Edit existing, cannot create new

Issue 1: Field Not Appearing

ADL: "Title" : title crud

Problem: Lowercase 'r' means not readable Solution: Change to cRud or CRUD

Issue 2: Cannot Add Values to List

ADL: "Members" : members cRud

Problem: Lowercase 'c' prevents creation Solution: Change to CRud if users should add members

Issue 3: Cannot Remove Value from Required Field

ADL: RELATION title[Document*Title] [UNI,TOT]
Interface: "Title" : title CRUD

Problem: [TOT] requires at least one value Solution: This is correct behavior for required fields

3.2 Component Lifecycle & Data Flow

Understanding the complete lifecycle helps debug timing issues and data synchronization problems.

The Complete Journey: From User Input to Database

┌─────────────────────────────────────────────────────────────────┐
│ 1. USER INTERACTION                                             │
│    User types in input field                                    │
│    ↓                                                            │
│    (input)="dirty = true"  ← Sets dirty flag                   │
└─────────────────────────────────────────────────────────────────┘
                              ↓
┌─────────────────────────────────────────────────────────────────┐
│ 2. COMPONENT EVENT HANDLING                                     │
│    User blurs field (clicks elsewhere)                          │
│    ↓                                                            │
│    (blur)="updateValue()"  ← Triggered on blur                 │
│    ↓                                                            │
│    BaseAtomicComponent.updateValue():                           │
│      - Checks if dirty flag is set                              │
│      - Transforms empty string to null                          │
│      - Extracts value or ._id_ if object                        │
└─────────────────────────────────────────────────────────────────┘
                              ↓
┌─────────────────────────────────────────────────────────────────┐
│ 3. PATCH REQUEST PREPARATION                                    │
│    interfaceComponent.patch(resource._path_, patches)           │
│    ↓                                                            │
│    AmpersandInterfaceComponent.patch():                         │
│      - Determines root resource path                            │
│      - Adjusts patch path for nested resources                  │
│      - Includes any pending patches from failed validations     │
│    ↓                                                            │
│    Patch object structure:                                      │
│    {                                                            │
│      op: 'replace',                                             │
│      path: 'propertyName',                                      │
│      value: actualValue                                         │
│    }                                                            │
└─────────────────────────────────────────────────────────────────┘
                              ↓
┌─────────────────────────────────────────────────────────────────┐
│ 4. HTTP COMMUNICATION                                           │
│    PATCH http://localhost/api/v1/resource/Type/id               │
│    ↓                                                            │
│    Request body: [patch objects]                                │
│    ↓                                                            │
│    Backend processes:                                           │
│      - Validates against business rules                         │
│      - Updates database                                         │
│      - Runs exec engine rules                                   │
│      - Recalculates derived fields                              │
│    ↓                                                            │
│    Response: PatchResponse<T> {                                 │
│      isCommitted: boolean,                                      │
│      invariantRulesHold: boolean,                               │
│      content: T  ← Updated resource data                        │
│    }                                                            │
└─────────────────────────────────────────────────────────────────┘
                              ↓
┌─────────────────────────────────────────────────────────────────┐
│ 5. RESPONSE HANDLING                                            │
│    tap((resp) => { ... })                                       │
│    ↓                                                            │
│    If resp.isCommitted:                                         │
│      - Clear pendingPatches array                               │
│      - mergeDeep(this.resource.data, resp.content)              │
│    Else:                                                        │
│      - Keep patches in pendingPatches                           │
│      - Will retry on next update                                │
└─────────────────────────────────────────────────────────────────┘
                              ↓
┌─────────────────────────────────────────────────────────────────┐
│ 6. UI UPDATE                                                    │
│    mergeDeep() strategy:                                        │
│      - Updates existing object properties in place              │
│      - Preserves object references                              │
│      - Prevents Angular from re-rendering entire component      │
│      - Maintains cursor position in input fields                │
│    ↓                                                            │
│    Angular change detection:                                    │
│      - Detects changed properties                               │
│      - Updates only affected DOM elements                       │
│      - User sees updated data                                   │
└─────────────────────────────────────────────────────────────────┘

Key Code Locations

1. Input Binding (Template)

<!-- atomic-alphanumeric.component.html -->
<input
    type="text"
    [(ngModel)]="resource[propertyName]"
    (input)="dirty = true"
    (blur)="updateValue()"
    [required]="isTot"
/>

2. Update Handler (Component)

// BaseAtomicComponent.class.ts
public updateValue() {
  if (!this.dirty) return;

  // Transform empty string to null value
  if (this.resource[this.propertyName] === '') {
    this.resource[this.propertyName] = null;
  }

  const val = this.resource[this.propertyName];

  this.interfaceComponent
    .patch(this.resource._path_, [
      {
        op: 'replace',
        path: this.propertyName,
        value: val?._id_ ? val._id_ : val,
      },
    ])
    .pipe(takeUntil(this.destroy$))
    .subscribe(() => {
      this.dirty = false;
    });
}

3. Patch Transformation (Interface Component)

// AmpersandInterfaceComponent.class.ts
public patch(path: string, patches: Array<Patch | PatchValue>): Observable<PatchResponse<T>> {
  // Retarget patches to root resource for complete interface update
  let rootPath = Array.isArray(this.resource.data)
    ? new ResourcePath(this.resource.data[0]!._path_).init()
    : new ResourcePath(this.resource.data._path_);

  // Adjust patch paths
  for (const patch of patches) {
    patch.path = extra + '/' + patch.path;
  }

  return this.http.patch<PatchResponse<T>>(rootPath.toString(), patches)
    .pipe(
      tap((resp) => {
        if (resp.isCommitted) {
          mergeDeep(this.resource.data, resp.content);
        }
      })
    );
}

Why Deep Merge Instead of Replacement?

Problem with Replacement:

// DON'T DO THIS:
this.resource.data = resp.content;  // Creates new object reference

Angular detects object reference change
Completely re-renders all child components
Loses cursor position in input fields
Loses component state (scroll position, expanded sections, etc.)

Solution with Deep Merge:

// DO THIS:
mergeDeep(this.resource.data, resp.content);  // Updates properties in place

Keeps same object reference
Angular only updates changed properties
Preserves cursor position and component state
Better user experience

3.3 Interactive Debugging Walkthrough

This section walks through a complete debugging scenario from browser to ADL source code.

Scenario: Field "Titel" Not Appearing in UI

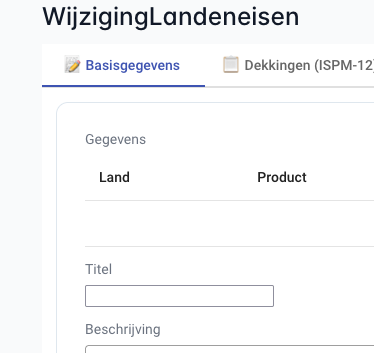

Let's trace the field "Titel". This is what it looks like in the browser:

example box form

And this is the corresponding Ampersand source code:

INTERFACE WijzigingLandeneisen FOR Sectormedewerker : I[Wijziging] CRuD BOX<TABS>
  [ "📝 Basisgegevens" : I[Wijziging] BOX<FORM>
      [ "Gegevens" : I[Wijziging] cRud BOX<TABLE>
          [ "Land" : wijzigingLandcode cRud
          , "Product" : wijzigingProduct cRud
          ]
      , "Titel" : wijzigingTitel CRUD        ← Found it!
      , "Beschrijving" : wijzigingBeschrijving CRUD
      ]
  ]

Step 1: Inspect the DOM

Action: Open browser DevTools (F12), select Elements tab, inspect the field

What you see:

<div class="field col-12 box-form-field">
  <label class="box-form-label">Titel</label>
  <div class="box-form-value">
    <app-atomic-alphanumeric
        propertyname="Titel"
        label="Titel"
        crud="CRUD"
        isuni=""
        _nghost-ng-c2667519175="">
      <div _ngcontent-ng-c2667519175="" class="ng-star-inserted">
        <input _ngcontent-ng-c2667519175=""
               type="text"
               class="ng-pristine ng-valid ng-star-inserted ng-touched">
      </div>
    </app-atomic-alphanumeric>
  </div>
</div>

Key observations:

Component type: app-atomic-alphanumeric
Property name: Titel
CRUD permissions: CRUD (full access)
Multiplicity: isuni="" (univalent - single value)

Step 2: Check Component Type Selection

Question: Why is this app-atomic-alphanumeric and not another type?

Answer: The component type is determined by the REPRESENT declaration:

RELATION wijzigingTitel[Wijziging*Titel] [UNI]

Since there's no explicit REPRESENT Titel TYPE ... declaration, Ampersand assigns the default type ALPHANUMERIC to the concept Titel.

Available atomic components:

atomic-alphanumeric ← Used for ALPHANUMERIC (default)
atomic-bigalphanumeric ← Used for BIGALPHANUMERIC
atomic-hugealphanumeric ← Used for HUGEALPHANUMERIC
atomic-integer ← Used for INTEGER
atomic-float ← Used for FLOAT
atomic-boolean ← Used for BOOLEAN
atomic-date ← Used for DATE
atomic-datetime ← Used for DATETIME
atomic-password ← Used for PASSWORD
atomic-url ← Used for URL
atomic-object ← Used for non-primitive types (relations to concepts)

To change component type, add a REPRESENT declaration:

REPRESENT Titel TYPE BIGALPHANUMERIC  -- Would use atomic-bigalphanumeric

Step 3: Examine the Template

File: frontend/src/app/generated/.templates/Atomic-ALPHANUMERIC.html

<app-atomic-alphanumeric
    [resource]="resource"
    [interfaceComponent]="this"
    [property]="resource.$name$"
    propertyName="$name$"
    label="$label$"
    crud="$crud$"
    $if(exprIsUni)$isUni$endif$
    $if(exprIsTot)$isTot$endif$
></app-atomic-alphanumeric>

Placeholders:

$name$ → Property name (e.g., "Titel")
$label$ → Display label (e.g., "Titel")
$crud$ → CRUD permissions (e.g., "CRUD")
$if(exprIsUni)$isUni$endif$ → Adds isUni attribute if relation is [UNI]
$if(exprIsTot)$isTot$endif$ → Adds isTot attribute if relation is [TOT]

Step 4: Check the Network Tab

Action: Open DevTools → Network tab → Refresh page → Find the resource request

Example request:

GET /api/v1/resource/Wijziging/123/WijzigingLandeneisen

Response structure:

{
  "_id_": "123",
  "_label_": "Wijziging 123",
  "_path_": "resource/Wijziging/123",
  "_ifcs_": ["WijzigingLandeneisen"],
  "Titel": "Example title text",
  "Beschrijving": "Example description",
  "...": "..."
}

Key observation: The property name in JSON matches the propertyname attribute in the DOM.

Step 5: Verify Component Initialization

File: frontend/src/app/shared/atomic-components/BaseAtomicComponent.class.ts

ngOnInit(): void {
  if (!(this.propertyName in this.resource)) {
    throw new Error(
      `Property '${this.propertyName}' not defined for object in '${this.resource._path_}'.
       It is likely that the backend data model is not in sync with the generated frontend.`
    );
  }
}

What this checks:

The property exists in the resource object
If not, throws a clear error message

Common cause of this error:

ADL was changed but frontend wasn't regenerated
Mismatch between backend and frontend code

Solution:

# Regenerate the frontend
ampersand proto --frontend-version Angular --no-backend model/main.adl --proto-dir /proto/frontend/src/app/generated

Complete picture:

ADL: "Titel" : wijzigingTitel CRUD
Template: Atomic-ALPHANUMERIC.html with placeholders
Generated: HTML with propertyname="Titel" and crud="CRUD"
Component: AtomicAlphanumericComponent extends BaseAtomicComponent
Runtime: Data fetched via API, rendered in DOM

Step 7: Common Debugging Checklist

Use this checklist when debugging field issues:

Field not visible
- Check CRUD flags (lowercase 'r' = not readable)
- Check *ngIf conditions in component template
- Verify role permissions in ADL interface definition
Field is read-only when it should be editable
- Check CRUD flags (lowercase 'u' = not updatable)
- Check interface role permissions
- Verify session role matches interface role
Wrong component type rendered
- Check REPRESENT declaration for the concept
- Verify relation target concept
- Check if template exists for the type
Data not appearing
- Check Network tab for API response
- Verify property name exists in response JSON
- Check for JavaScript errors in Console tab
- Verify backend has data for this resource
Property not defined error
- Regenerate frontend components
- Verify ADL interface matches generated code
- Check backend is serving correct interface structure

3.4 Property Name Encoding Deep Dive

Property names with special characters are encoded to ensure validity in TypeScript, HTML, and URLs.

Encoding Rules

ASCII Encoding: Non-alphanumeric characters are converted to _XX_ format where XX is the ASCII code

Character	ASCII Code	Encoded As	Example Input	Example Output
Space	32	`_32_`	"Project Name"	`Project_32_Name`
. (period)	46	`_46_`	"1. First"	`_49__46__32_First`
( (paren)	40	`_40_`	"Name (old)"	`Name_32__40_old_41_`
) (paren)	41	`_41_`	"Name (old)"	`Name_32__40_old_41_`
- (dash)	45	`_45_`	"Sub-item"	`Sub_45_item`
/ (slash)	47	`_47_`	"A/B"	`A_47_B`
: (colon)	58	`_58_`	"Type: Value"	`Type_58__32_Value`

Digit Encoding: Numbers at start of identifier are also encoded

Input	ASCII Codes	Encoded
"1"	49	`_49_`
"2"	50	`_50_`
"10"	49, 48	`_49__48_`

Decoding Example

Encoded: _49__46__32_Assign_32_an_32_employee_32__40_cRud_41_

Step-by-step decoding:

_49_ → ASCII 49 → "1"
_46_ → ASCII 46 → "."
_32_ → ASCII 32 → " " (space)
Assign → "Assign" (no encoding)
_32_ → " "
an → "an"
_32_ → " "
employee → "employee"
_32_ → " "
_40_ → ASCII 40 → "("
cRud → "cRud"
_41_ → ASCII 41 → ")"

Decoded: "1. Assign an employee (cRud)"

Quick Decoding Reference

// JavaScript decoder function (use in browser console)
function decodePropertyName(encoded) {
  return encoded.replace(/_(\d+)_/g, (match, code) =>
    String.fromCharCode(parseInt(code))
  );
}

// Usage:
decodePropertyName("_49__46__32_Assign_32_an_32_employee_32__40_cRud_41_")
// Returns: "1. Assign an employee (cRud)"

Where Encoded Names Appear

1. Generated Component HTML:

<app-atomic-object
    [resource]="resource._49__46__32_Assign_32_an_32_employee_32__40_cRud_41_"
    propertyName="setRelation"
></app-atomic-object>

2. TypeScript Component Code:

this.resource._49__46__32_Assign_32_an_32_employee_32__40_cRud_41_?.setRelation

3. API Responses:

{
  "_id_": "project1",
  "_49__46__32_Assign_32_an_32_employee_32__40_cRud_41_": {
    "setRelation": [...],
    "selectFrom": [...]
  }
}

4. Error Messages:

Property '_49__46__32_Assign_32_an_32_employee_32__40_cRud_41_' not defined for object

5. Network Requests:

PATCH /api/v1/resource/SESSION/1
Body: [{"op": "replace", "path": "_49__46__32_Assign_32_an_32_employee_32__40_cRud_41_/setRelation", "value": "emp1"}]

3.5 Common Errors and Solutions

This section catalogs frequently encountered errors with detailed explanations and solutions.

Error 1: Property Not Defined

Error Message:

Error: Property 'wijzigingTitel' not defined for object in 'resource/Wijziging/123'.
It is likely that the backend data model is not in sync with the generated frontend.

Where it occurs: BaseAtomicComponent.ngOnInit() or BaseBoxComponent.ngOnInit()

Root cause: The frontend expects a property that doesn't exist in the resource object returned by the API.

Common scenarios:

ADL interface was modified but frontend wasn't regenerated
Backend and frontend are from different versions

##3. I `noca-placerrquivinfpts

FdC**f.j:Addld/v/www///fj2PmNgJSfFLOPOWNbox3.csGNf`FVmh5PvcrGvghKM-f///sj/c.-ATmd-v-Acgxgu-pndjfygd

Generation Process Architecture

2. Data Journey: From ADL Interface to DOM​

Step 1: ADL Interface Definition​

Step 2: Template with Placeholders​

Step 3: Ampersand Template Processing​

Step 4: Runtime Data Creation​

Step 5: DOM Rendering​

3. Debugging the Flow: From Pixels to Ampersand Source​

3.1 CRUD Permission Decision Tree​

CRUD Flag Interpretation​

Component Rendering Decisions​

CRUD Combinations Reference Table​

Common CRUD-Related Issues​

3.2 Component Lifecycle & Data Flow​

The Complete Journey: From User Input to Database​

Key Code Locations​

Why Deep Merge Instead of Replacement?​

3.3 Interactive Debugging Walkthrough​

Scenario: Field "Titel" Not Appearing in UI​

Step 1: Inspect the DOM​

Step 2: Check Component Type Selection​

Step 3: Examine the Template​

Step 4: Check the Network Tab​

Step 5: Verify Component Initialization​

Step 7: Common Debugging Checklist​

3.4 Property Name Encoding Deep Dive​

Encoding Rules​

Decoding Example​

Quick Decoding Reference​

Where Encoded Names Appear​

3.5 Common Errors and Solutions​

Error 1: Property Not Defined​
